DIY KIT – Nelson Audio 16.6” 24 Plug Power Bus Board for Eurorack Modular Synths (1)
( items)
Limited Time Sale$14.99 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 218031443 | Release Date | 2026/05/03 | List Price | $10.00 | Model Number | 218031443 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||

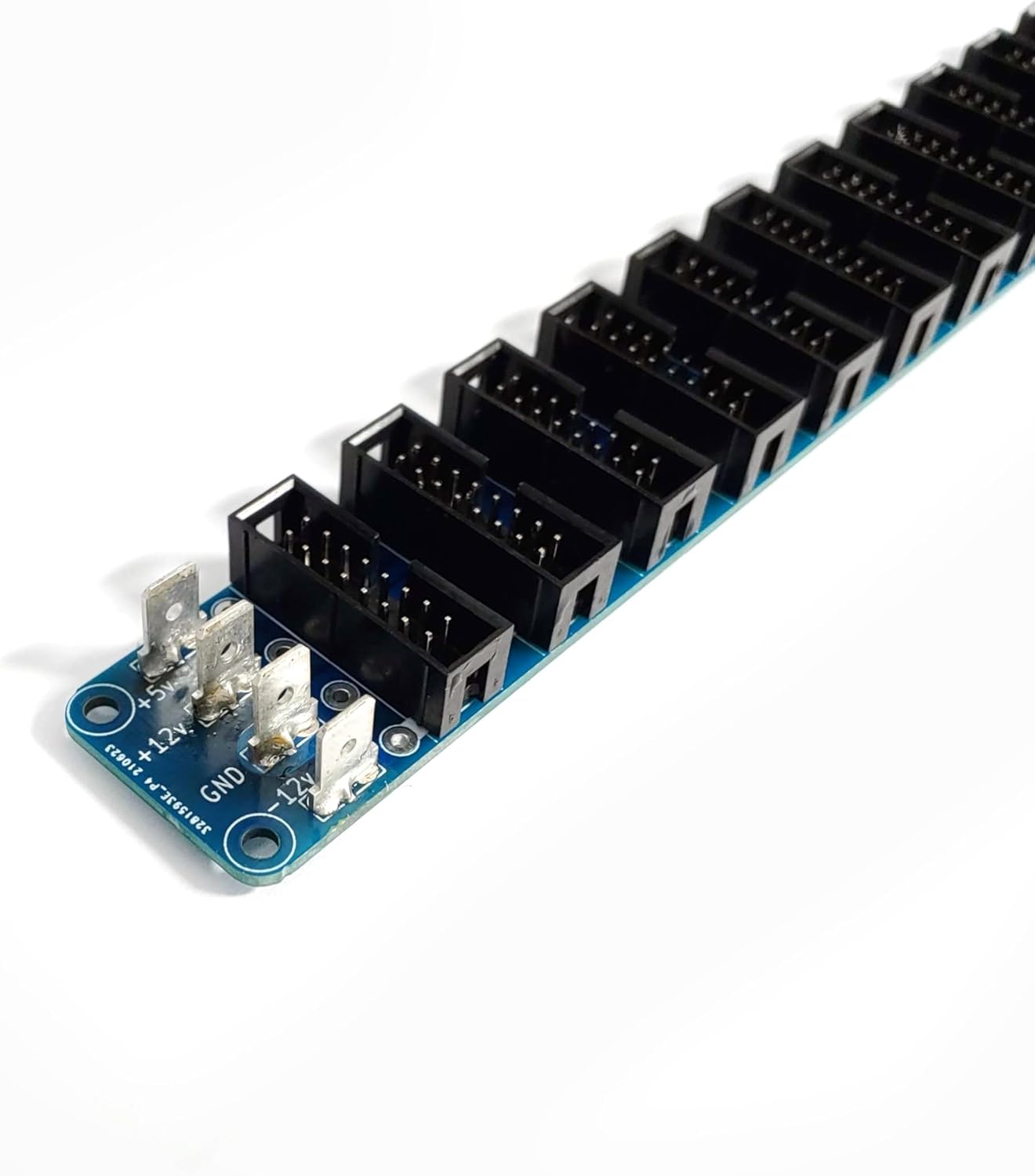

Includes: 1 PCB 3 power indicator LEDs 3 current-limiting resistors for the LEDs 24 Shrouded 16p Headers 4 FASTON 250 Terminals Power Input Options: FASTON 250 Spade Connector Terminals Directly soldered wires up to 18awg (16awg stranded should fit, but depending on the exact wire, 1 or 2 strands may not fit) 2x5 or 2x8 Dupont Connector with 20-22 awg wires 16 Pin 26-28awg ribbon cable (If using less than 1.5A per voltage) Max Current Handling: +5v: 2 Amps +12v: 3 Amps -12v: 3 Amps Total/Ground: 6 Amps Total Width: 420mm/16.54" (84hp is 16.8")
- DIY KIT – Nelson Audio 16.6” 24 Plug Power Bus Board for Eurorack Modular Synths
| Color | Blue |
|---|---|
| Material | Fiberglass |
| Brand Name | Nelson Audio & Light |
| Model Name | DIY KIT – Nelson Audio 16.6” 24 Plug Power Bus Board for Eurorack Modular Synths |
| Unit Count | 1.0 Count |
| Finish Type | Unfinished |
| Item Weight | 6 Ounces |
| Part Number | HWK-0037 |
| Manufacturer | Nelson Audio & Light |
| Model Number | HWK-0037 |
| Body Material | Fiberglass |
| Connector Type | Dupont Connector, FASTON 250 |
| Item Dimensions | 18 x 2 x 2 inches |
| Included Components | 1 PCB, 3 power indicator LEDs, 3 current-limiting resistors, 24 Shrouded 16p Headers, 4 FASTON 250 Terminals, Power input options: FASTON 250 Spade Connector Terminals, Directly soldered wires, 2x5 or 2x8 Dupont Connector with 20-22 awg wires, 16 Pin 26-28awg ribbon cable |
| Warranty Description | No warranty. |
